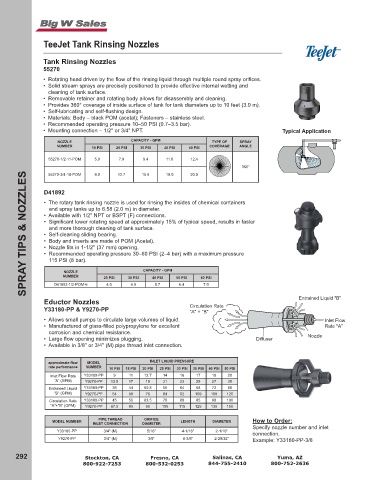

Page 294 - 2022 Online Catalog
P. 294
TeeJet Tank Rinsing Nozzles
Tank Rinsing Nozzles
55270
• Rotating head driven by the flow of the rinsing liquid through multiple round spray orifices.
• Solid stream sprays are precisely positioned to provide effective internal wetting and
cleaning of tank surface.
• Removable retainer and rotating body allows for disassembly and cleaning.
• Provides 360° coverage of inside surface of tank for tank diameters up to 10 feet (3.0 m).
• Self-lubricating and self-flushing design.
• Materials: Body – black POM (acetal); Fasteners – stainless steel.
• Recommended operating pressure 10–50 PSI (0.7–3.5 bar).
• Mounting connection – 1/2" or 3/4" NPT. Typical Application
NOZZLE CAPACITY - GPM TYPE OF SPRAY
NUMBER 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI COVERAGE ANGLE
55270-1/2-11-POM 5.9 7.9 9.4 11.0 12.4
360°
SPRAY TIPS & NOZZLES
55270-3/4-18-POM 9.0 12.7 15.6 18.0 20.0
D41892
PUMPS and spray tanks up to 6.58 (2.0 m) in diameter.
• The rotary tank rinsing nozzle is used for rinsing the insides of chemical containers
• Available with 1/2" NPT or BSPT (F) connections.
• Significant lower rotating speed at approximately 15% of typical speed, results in faster
and more thorough cleaning of tank surface.
• Self-cleaning sliding bearing.
• Body and inserts are made of POM (Acetal).
• Nozzle fits in 1-1/2" (37 mm) opening.
• Recommended operating pressure 30–60 PSI (2–4 bar) with a maximum pressure
115 PSI (8 bar).
NOZZLE CAPACITY - GPM
NUMBER 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI
D41892-1/2-POM-6 4.0 4.9 5.7 6.4 7.0
Eductor Nozzles Entrained Liquid "B"
Y33180-PP & Y9270-PP Circulation Rate
"A" + "B"
• Allows small pumps to circulate large volumes of liquid. Inlet Flow
• Manufactured of glass-filled polypropylene for excellent Rate "A"
corrosion and chemical resistance.
• Large flow opening minimizes plugging. Diffuser Nozzle
• Available in 3/8" or 3/4" (M) pipe thread inlet connection.
approximate flow MODEL INLET LIQUID PRESSURE
rate performance NUMBER 10 PSI 15 PSI 20 PSI 25 PSI 30 PSI 35 PSI 40 PSI 50 PSI
Inlet Flow Rate Y33180-PP 9 11 12.7 14 16 17 18 20
“A” (GPM) Y9270-PP 13.5 17 19 21 23 25 27 30
Entrained Liquid Y33180-PP 36 44 50.8 56 64 68 72 80
“B” (GPM) Y9270-PP 54 68 76 84 92 100 108 120
Circulation Rate Y33180-PP 45 55 63.5 70 80 85 90 100
“A”+“B” (GPM) Y9270-PP 67.5 85 95 105 115 125 135 150
PIPE THREAD ORIFICE How to Order:
MODEL NUMBER LENGTH DIAMETER
INLET CONNECTION DIAMETER
Specify nozzle number and inlet
Y33180-PP 3/4" (M) 5/16" 4-1/16" 2-1/16"
connection.
Y9270-PP 3/4" (M) 3/8" 6-3/8" 2-29/32" Example: Y33180-PP-3/8
