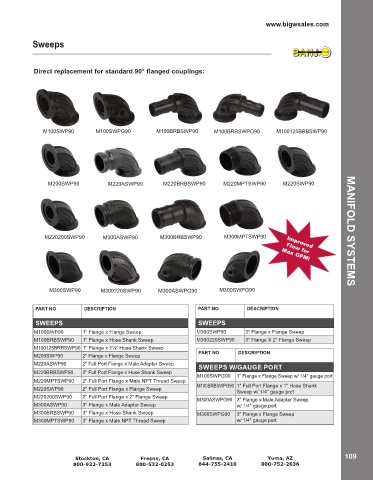

Page 111 - 2022 Online Catalog

www.bigwsales.com

Sweeps

Direct replacement for standard 90° flanged couplings:

M100SWP90 M100SWPG90 M100BRBSWP90 M100BRBSWPG90 M100125BRBSWP90

M200SWP90 M220ASWP90 M220BRBSWP90 M220MPTSWP90 M220SWP90

M220200SWP90 M300ASWP90 M300BRBSWP90 M300MPTSWP90 Max GPM! MANIFOLD SYSTEMS
Improved
Flow for

M300SWP90 M300220SWP90 M300ASWPG90 M300SWPG90

PART NO DESCRIPTION PART NO DESCRIPTION

SWEEPS SWEEPS
M100SWP90 1" Flange x Flange Sweep M300SWP90 3" Flange x Flange Sweep
M100BRBSWP90 1" Flange x Hose Shank Sweep M300220SWP90 3" Flange X 2" Flange Sweep
M100125BRBSWP90 1" Flange x 1¼" Hose Shank Sweep
M200SWP90 2" Flange x Flange Sweep PART NO DESCRIPTION
M220ASWP90 2" Full Port Flange x Male Adapter Sweep SWEEPS W/GAUGE PORT
M220BRBSWP90 2" Full Port Flange x Hose Shank Sweep
M100SWPG90 1" Flange x Flange Sweep w/ 1/4" gauge port
M220MPTSWP90 2" Full Port Flange x Male NPT Thread Sweep
M220SWP90 2" Full Port Flange x Flange Sweep M100BRBSWPG90 1" Full Port Flange x 1" Hose Shank
Sweep w/ 1/4" gauge port
M220200SWP90 2" Full Port Flange x 2" Flange Sweep M300ASWPG90 3" Flange x Male Adapter Sweep
M300ASWP90 3" Flange x Male Adapter Sweep w/ 1/4" gauge port
M300BRBSWP90 3" Flange x Hose Shank Sweep M300SWPG90 3" Flange x Flange Sweep
M300MPTSWP90 3" Flange x Male NPT Thread Sweep w/ 1/4" gauge port
