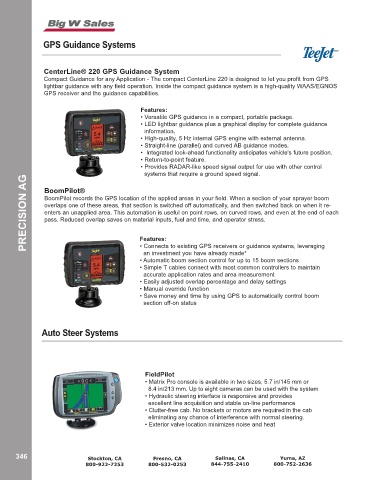

Page 348 - Catalog

GPS Guidance Systems

CenterLine® 220 GPS Guidance System
Compact Guidance for any Application - The compact CenterLine 220 is designed to let you profit from GPS
lightbar guidance with any field operation. Inside the compact guidance system is a high-quality WAAS/EGNOS
GPS receiver and the guidance capabilities.

Features:
• Versatile GPS guidance in a compact, portable package.
• LED lightbar guidance plus a graphical display for complete guidance
information.
• High-quality, 5 Hz internal GPS engine with external antenna.
• Straight-line (parallel) and curved AB guidance modes.
• Integrated look-ahead functionality anticipates vehicle's future position.
• Return-to-point feature.
• Provides RADAR-like speed signal output for use with other control
systems that require a ground speed signal.
PRECISION AG BoomPilot records the GPS location of the applied areas in your field. When a section of your sprayer boom
BoomPilot®

overlaps one of these areas, that section is switched off automatically, and then switched back on when it re-
enters an unapplied area. This automation is useful on point rows, on curved rows, and even at the end of each
pass. Reduced overlap saves on material inputs, fuel and time, and operator stress.

Features:
• Connects to existing GPS receivers or guidance systems, leveraging
an investment you have already made*
• Automatic boom section control for up to 15 boom sections
• Simple T cables connect with most common controllers to maintain
accurate application rates and area measurement
• Easily adjusted overlap percentage and delay settings
• Manual override function
• Save money and time by using GPS to automatically control boom
section off-on status

Auto Steer Systems

FieldPilot
• Matrix Pro console is available in two sizes, 5.7 in/145 mm or
8.4 in/213 mm. Up to eight cameras can be used with the system
• Hydraulic steering interface is responsive and provides
excellent line acquisition and stable on-line performance
• Clutter-free cab. No brackets or motors are required in the cab
eliminating any chance of interference with normal steering.
• Exterior valve location minimizes noise and heat
