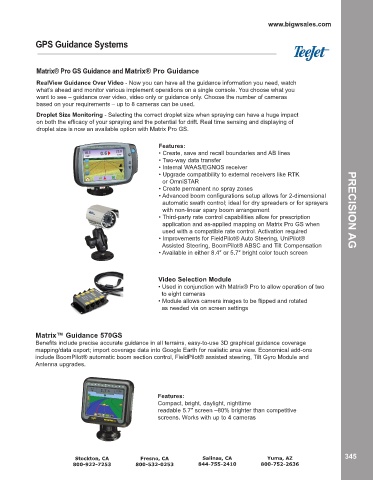

Page 347 - Catalog

www.bigwsales.com

GPS Guidance Systems

Matrix® Pro GS Guidance and Matrix® Pro Guidance

RealView Guidance Over Video - Now you can have all the guidance information you need, watch
what’s ahead and monitor various implement operations on a single console. You choose what you
want to see – guidance over video, video only or guidance only. Choose the number of cameras
based on your requirements – up to 8 cameras can be used.
Droplet Size Monitoring - Selecting the correct droplet size when spraying can have a huge impact
on both the efficacy of your spraying and the potential for drift. Real time sensing and displaying of
droplet size is now an available option with Matrix Pro GS.

Features:
• Create, save and recall boundaries and AB lines
• Two-way data transfer
• Internal WAAS/EGNOS receiver
• Upgrade compatibility to external receivers like RTK
or OmniSTAR
• Create permanent no spray zones
• Advanced boom configurations setup allows for 2-dimensional
automatic swath control; ideal for dry spreaders or for sprayers
with non-linear spary boom arrangement PRECISION AG
• Third-party rate control capabilities allow for prescription
application and as-applied mapping on Matrix Pro GS when
used with a compatible rate control. Activation required
• Improvements for FieldPilot® Auto Steering, UniPilot®
Assisted Steering, BoomPilot® ABSC and Tilt Compensation
• Available in either 8.4″ or 5.7″ bright color touch screen

Video Selection Module
• Used in conjunction with Matrix® Pro to allow operation of two
to eight cameras
• Module allows camera images to be flipped and rotated
as needed via on screen settings

Matrix™ Guidance 570GS
Benefits include precise accurate guidance in all terrains, easy-to-use 3D graphical guidance coverage
mapping/data export; import coverage data into Google Earth for realistic area view. Economical add-ons
include BoomPilot® automatic boom section control, FieldPilot® assisted steering, Tilt Gyro Module and
Antenna upgrades.

Features:
Compact, bright, daylight, nighttime
readable 5.7" screen –80% brighter than competitive
screens. Works with up to 4 cameras
