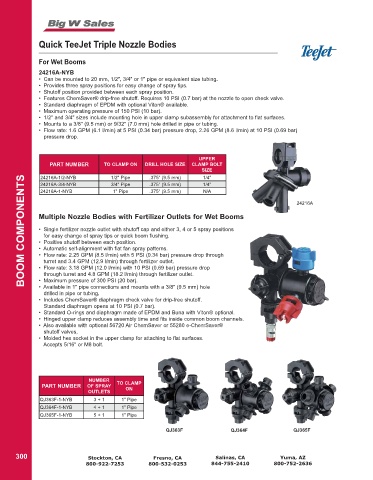

Page 302 - Catalog

Quick TeeJet Triple Nozzle Bodies

For Wet Booms
24216A-NYB
• Can be mounted to 20 mm, 1/2", 3/4" or 1" pipe or equivalent size tubing.
• Provides three spray positions for easy change of spray tips.
• Shutoff position provided between each spray position.
• Features ChemSaver® drip-free shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve.
• Standard diaphragm of EPDM with optional Viton® available.
• Maximum operating pressure of 150 PSI (10 bar).
• 1/2" and 3/4" sizes include mounting hole in upper clamp subassembly for attachment to flat surfaces.
• Mounts to a 3/8" (9.5 mm) or 9/32" (7.0 mm) hole drilled in pipe or tubing.
• Flow rate: 1.6 GPM (6.1 l/min) at 5 PSI (0.34 bar) pressure drop, 2.26 GPM (8.6 l/min) at 10 PSI (0.69 bar)
pressure drop.

UPPER
PART NUMBER TO CLAMP ON DRILL HOLE SIZE CLAMP BOLT
SIZE
BOOM COMPONENTS
24216A-1/2-NYB 1/2" Pipe .375" (9.5 mm) 1/4"
24216A-3/4-NYB 3/4" Pipe .375" (9.5 mm) 1/4"
24216A-1-NYB 1" Pipe .375" (9.5 mm) N/A
24216A

Multiple Nozzle Bodies with Fertilizer Outlets for Wet Booms

• Single fertilizer nozzle outlet with shutoff cap and either 3, 4 or 5 spray positions
for easy change of spray tips or quick boom flushing.
• Positive shutoff between each position.
• Automatic self-alignment with flat fan spray patterns.
• Flow rate: 2.25 GPM (8.5 l/min) with 5 PSI (0.34 bar) pressure drop through
turret and 3.4 GPM (12.9 l/min) through fertilizer outlet.
• Flow rate: 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop
through turret and 4.8 GPM (18.2 l/min) through fertilizer outlet.
• Maximum pressure of 300 PSI (20 bar).
• Available in 1" pipe connections and mounts with a 3/8" (9.5 mm) hole
drilled in pipe or tubing.
• Includes ChemSaver® diaphragm check valve for drip-free shutoff.
Standard diaphragm opens at 10 PSI (0.7 bar).
• Standard O-rings and diaphragm made of EPDM and Buna with Viton® optional.
• Hinged upper clamp reduces assembly time and fits inside common boom channels.
• Also available with optional 56720 Air ChemSaver or 55280 e-ChemSaver®
shutoff valves,
• Molded hex socket in the upper clamp for attaching to flat surfaces.
Accepts 5/16" or M8 bolt.

NUMBER
PART NUMBER OF SPRAY TO CLAMP
ON
OUTLETS
QJ363F-1-NYB 3 + 1 1" Pipe
QJ364F-1-NYB 4 + 1 1" Pipe
QJ365F-1-NYB 5 + 1 1" Pipe

QJ363F QJ364F QJ365F
