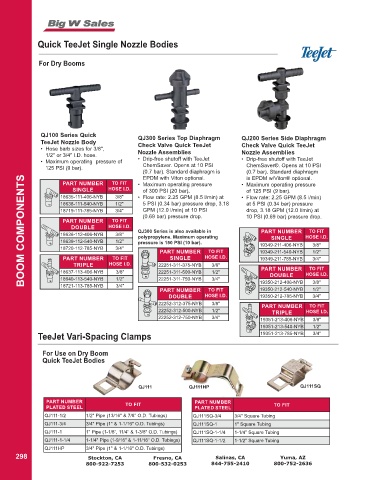

Page 300 - Catalog

Quick TeeJet Single Nozzle Bodies

For Dry Booms

QJ100 Series Quick QJ300 Series Top Diaphragm QJ200 Series Side Diaphragm
TeeJet Nozzle Body Check Valve Quick TeeJet
• Hose barb sizes for 3/8", Check Valve Quick TeeJet
1/2" or 3/4" I.D. hose. Nozzle Assemblies Nozzle Assemblies
• Maximum operating pressure of • Drip-free shutoff with TeeJet • Drip-free shutoff with TeeJet
125 PSI (9 bar). ChemSaver. Opens at 10 PSI ChemSaver®. Opens at 10 PSI
(0.7 bar). Standard diaphragm is (0.7 bar). Standard diaphragm
EPDM with Viton optional. is EPDM w/Viton® optional.
BOOM COMPONENTS
PART NUMBER TO FIT • Maximum operating pressure • Maximum operating pressure
SINGLE HOSE I.D. of 300 PSI (20 bar). of 125 PSI (9 bar).
18635-111-406-NYB 3/8" • Flow rate: 2.25 GPM (8.5 l/min) at • Flow rate: 2.25 GPM (8.5 l/min)
18638-111-540-NYB 1/2" 5 PSI (0.34 bar) pressure drop, 3.18 at 5 PSI (0.34 bar) pressure
18719-111-785-NYB 3/4" GPM (12.0 l/min) at 10 PSI drop, 3.18 GPM (12.0 l/min) at
(0.69 bar) pressure drop. 10 PSI (0.69 bar) pressure drop.
PART NUMBER TO FIT
DOUBLE HOSE I.D.
TO FIT
18636-112-406-NYB 3/8" QJ300 Series is also available in PART NUMBER HOSE I.D.
polypropylene. Maximum operating
SINGLE
18639-112-540-NYB 1/2" pressure is 150 PSI (10 bar).
18720-112-785-NYB 3/4" 19349-211-406-NYB 3/8"
PART NUMBER TO FIT 19349-211-540-NYB 1/2"
PART NUMBER TO FIT SINGLE HOSE I.D. 19349-211-785-NYB 3/4"
TRIPLE HOSE I.D. 22251-311-375-NYB 3/8"
TO FIT
18637-113-406-NYB 3/8" 22251-311-500-NYB 1/2" PART NUMBER HOSE I.D.
DOUBLE
18640-113-540-NYB 1/2" 22251-311-750-NYB 3/4" 19350-212-406-NYB 3/8"
18721-113-785-NYB 3/4"
PART NUMBER TO FIT 19350-212-540-NYB 1/2"
DOUBLE HOSE I.D. 19350-212-785-NYB 3/4"
22252-312-375-NYB 3/8" PART NUMBER TO FIT
22252-312-500-NYB 1/2" TRIPLE HOSE I.D.
22252-312-750-NYB 3/4" 19351-213-406-NYB 3/8"
19351-213-540-NYB 1/2"
TeeJet Vari-Spacing Clamps 19351-213-785-NYB 3/4"

For Use on Dry Boom
Quick TeeJet Bodies

QJ111 QJ111HP QJ111SQ

PART NUMBER TO FIT PART NUMBER
PLATED STEEL PLATED STEEL TO FIT
QJ111-1/2 1/2" Pipe (13/16" & 7/8" O.D. Tubings) QJ111SQ-3/4 3/4" Square Tubing
QJ111-3/4 3/4" Pipe (1" & 1-1/16" O.D. Tubings) QJ111SQ-1 1" Square Tubing
QJ111-1 1" Pipe (1-1/8", 11/4" & 1-3/8" O.D. Tubings) QJ111SQ-1-1/4 1-1/4" Square Tubing
QJ111-1-1/4 1-1/4" Pipe (1-9/16" & 1-11/16" O.D. Tubings) QJ111SQ-1-1/2 1-1/2" Square Tubing
QJ111HP 3/4" Pipe (1" & 1-1/16" O.D. Tubings)
