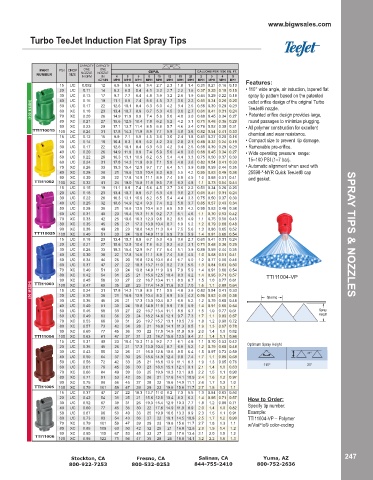

Turbo TeeJet Induction Flat Spray Tips

CAPACITY CAPACITY 20"
PART PSI DROP ONE ONE GPA GALLONS PER 1000 SQ. FT.
NUMBER SIZE NOZZLE NOZZLE 4 5 6 8 10 12 15 20 2 3 4 5
IN GPM
IN
OZ/ MIN MPH MPH MPH MPH MPH MPH MPH MPH MPH MPH MPH MPH Features:
15 UC 0.092 12 6.8 5.5 4.6 3.4 2.7 2.3 1.8 1.4 0.31 0.21 0.16 0.13
20 UC 0.11 14 8.2 6.5 5.4 4.1 3.3 2.7 2.2 1.6 0.37 0.25 0.19 0.15 • 110° wide angle, air induction, tapered flat
30 UC 0.13 17 9.7 7.7 6.4 4.8 3.9 3.2 2.6 1.9 0.44 0.29 0.22 0.18 spray tip pattern based on the patented
40 UC 0.15 19 11.1 8.9 7.4 5.6 4.5 3.7 3.0 2.2 0.51 0.34 0.26 0.20 outlet orifice design of the original Turbo
(100 MESH) 50 UC 0.17 22 12.6 10.1 8.4 6.3 5.0 4.2 3.4 2.5 0.58 0.39 0.29 0.23 TeeJet® nozzle.
3.6
2.7
8.9
0.18
4.5
23
0.61 0.41 0.31 0.24
XC
13.4 10.7
5.3
6.7
60
• Patented orifice design provides large,
70
6.2
0.71 0.48 0.36 0.29
4.2
7.8
XC
3.1
15.6 12.5 10.4
80 XC 0.20 26 14.9 11.9 9.9 7.4 5.9 5.0 4.0 3.0 0.68 0.45 0.34 0.27 round passages to minimize plugging.
5.2
27
0.21
90 XC 0.23 29 17.1 13.7 11.4 8.5 6.8 5.7 4.6 3.4 0.78 0.52 0.39 0.31 • All polymer construction for excellent
TTI110015 100 XC 0.24 31 17.8 14.3 11.9 8.9 7.1 5.9 4.8 3.6 0.82 0.54 0.41 0.33 chemical and wear resistance.
15 UC 0.12 15 8.9 7.1 5.9 4.5 3.6 3.0 2.4 1.8 0.41 0.27 0.20 0.16
20 UC 0.14 18 10.4 8.3 6.9 5.2 4.2 3.5 2.8 2.1 0.48 0.32 0.24 0.19 • Compact size to prevent tip damage.
30 UC 0.17 22 12.6 10.1 8.4 6.3 5.0 4.2 3.4 2.5 0.58 0.39 0.29 0.23 • Removable pre-orifice.
40 UC 0.20 26 14.9 11.9 9.9 7.4 5.9 5.0 4.0 3.0 0.68 0.45 0.34 0.27 • Wide operating pressure range:
50 UC 0.22 28 16.3 13.1 10.9 8.2 6.5 5.4 4.4 3.3 0.75 0.50 0.37 0.30 15–100 PSI (1–7 bar).
60 UC 0.24 31 17.8 14.3 11.9 8.9 7.1 5.9 4.8 3.6 0.82 0.54 0.41 0.33
70 XC 0.26 33 19.3 15.4 12.9 9.7 7.7 6.4 5.1 3.9 0.88 0.59 0.44 0.35 • Automatic alignment when used with
80 XC 0.28 36 21 16.6 13.9 10.4 8.3 6.9 5.5 4.2 0.95 0.63 0.48 0.38 25598-*-NYR Quick TeeJet® cap
90 XC 0.30 38 22 17.8 14.9 11.1 8.9 7.4 5.9 4.5 1.0 0.68 0.51 0.41 and gasket.
TTI11002 100 XC 0.32 41 24 19.0 15.8 11.9 9.5 7.9 6.3 4.8 1.1 0.73 0.54 0.44
15 UC 0.15 19 11.1 8.9 7.4 5.6 4.5 3.7 3.0 2.2 0.51 0.34 0.26 0.20
20 UC 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7 0.61 0.41 0.31 0.24
30 UC 0.22 28 16.3 13.1 10.9 8.2 6.5 5.4 4.4 3.3 0.75 0.50 0.37 0.30
40 UC 0.25 32 18.6 14.9 12.4 9.3 7.4 6.2 5.0 3.7 0.85 0.57 0.43 0.34
50 UC 0.28 36 21 16.6 13.9 10.4 8.3 6.9 5.5 4.2 0.95 0.63 0.48 0.38
60 UC 0.31 40 23 18.4 15.3 11.5 9.2 7.7 6.1 4.6 1.1 0.70 0.53 0.42 PUMPS
70 XC 0.33 42 25 19.6 16.3 12.3 9.8 8.2 6.5 4.9 1.1 0.75 0.56 0.45
80 XC 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2 1.2 0.79 0.60 0.48
90 XC 0.38 49 28 23 18.8 14.1 11.3 9.4 7.5 5.6 1.3 0.86 0.65 0.52
TT110025 100 XC 0.40 51 30 24 19.8 14.9 11.9 9.9 7.9 5.9 1.4 0.91 0.68 0.54 SPRAY TIPS & NOZZLES
15 UC 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7 0.61 0.41 0.31 0.24
20 UC 0.21 27 15.6 12.5 10.4 7.8 6.2 5.2 4.2 3.1 0.71 0.48 0.36 0.29
30 UC 0.26 33 19.3 15.4 12.9 9.7 7.7 6.4 5.1 3.9 0.88 0.59 0.44 0.35
40 UC 0.30 38 22 17.8 14.9 11.1 8.9 7.4 5.9 4.5 1.0 0.68 0.51 0.41
50 UC 0.34 44 25 20 16.8 12.6 10.1 8.4 6.7 5.0 1.2 0.77 0.58 0.46
60 UC 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5 1.3 0.84 0.63 0.50
70 XC 0.40 51 30 24 19.8 14.9 11.9 9.9 7.9 5.9 1.4 0.91 0.68 0.54
80 XC 0.42 54 31 25 21 15.6 12.5 10.4 8.3 6.2 1.4 0.95 0.71 0.57 TTI11004-VP
90 XC 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7 1.5 1.0 0.77 0.61
(50 MESH) 100 XC 0.47 60 17.8 14.3 11.9 17.4 14.0 11.6 9.3 7.0 0.82 0.54 0.41 0.33
TTI11003
28
23
35
0.80 0.64
1.6
1.1
15
5.9
0.24
4.8
31
3.6
7.1
UC
8.9
5.5
16.6 13.9 10.4 8.3
0.95 0.63 0.48 0.38
21
4.2
UC
6.9
36
20
0.28
30 UC 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2 1.2 0.79 0.60 0.48 Spacing
40 UC 0.40 51 30 24 19.8 14.9 11.9 9.9 7.9 5.9 1.4 0.91 0.68 0.54
50 UC 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7 1.5 1.0 0.77 0.61 Spray
60 UC 0.49 63 36 29 24 18.2 14.6 12.1 9.7 7.3 1.7 1.1 0.83 0.67 Height
70 XC 0.53 68 39 31 26 19.7 15.7 13.1 10.5 7.9 1.8 1.2 0.90 0.72
80 XC 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5 1.9 1.3 0.97 0.78
90 XC 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9 2.0 1.4 1.0 0.82
TTI11004 100 XC 0.63 81 47 37 31 23 18.7 15.6 12.5 9.4 2.1 1.4 1.1 0.86
15 UC 0.31 40 23 18.4 15.3 11.5 9.2 7.7 6.1 4.6 1.1 0.70 0.53 0.42 Optimum Spray Height
20 UC 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2 1.2 0.79 0.60 0.48
30 UC 0.43 55 32 26 21 16.0 12.8 10.6 8.5 6.4 1.5 0.97 0.73 0.58 20
40 UC 0.50 64 37 30 25 18.6 14.9 12.4 9.9 7.4 1.7 1.1 0.85 0.68
50 UC 0.56 72 42 33 28 21 16.6 13.9 11.1 8.3 1.9 1.3 0.95 0.76
60 UC 0.61 78 45 36 30 23 18.1 15.1 12.1 9.1 2.1 1.4 1.0 0.83 110º 20"
70 XC 0.66 84 49 39 33 25 19.6 16.3 13.1 9.8 2.2 1.5 1.1 0.90
80 XC 0.71 91 53 42 35 26 21 17.6 14.1 10.5 2.4 1.6 1.2 0.97
90 XC 0.75 96 56 45 37 28 22 18.6 14.9 11.1 2.6 1.7 1.3 1.0
TTI11005 100 XC 0.79 101 59 47 39 29 23 19.6 15.6 11.7 2.7 1.8 1.3 1.1
15 UC 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5 1.3 0.84 0.63 0.50
20 UC 0.42 54 31 25 21 15.6 12.5 10.4 8.3 6.2 1.4 0.95 0.71 0.57 How to Order:
30 UC 0.52 67 39 31 26 19.3 15.4 12.9 10.3 7.7 1.8 1.2 0.88 0.71 Specify tip number.
40 UC 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9 2.0 1.4 1.0 0.82
50 UC 0.67 86 50 40 33 25 19.9 16.6 13.3 9.9 2.3 1.5 1.1 0.91 Example:
60 UC 0.73 93 54 43 36 27 22 18.1 14.5 10.8 2.5 1.7 1.2 0.99 TTI11004-VP – Polymer
70 XC 0.79 101 59 47 39 29 23 19.6 15.6 11.7 2.7 1.8 1.3 1.1 w/VisiFlo® color-coding
80 XC 0.85 109 63 50 42 32 25 21 16.8 12.6 2.9 1.9 1.4 1.2
90 XC 0.90 115 67 53 45 33 27 22 17.8 13.4 3.1 2.0 1.5 1.2
TTI11006 100 XC 0.95 122 71 56 47 35 28 24 18.8 14.1 3.2 2.2 1.6 1.3
