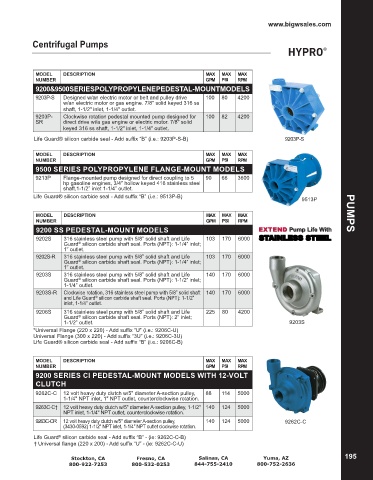

Page 197 - Catalog

www.bigwsales.com

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 & 9500 SERIES POLYPROPYLENE PEDESTAL-MOUNT MODELS
9203P-S Designed w/an electric motor or belt and pulley drive 100 80 4200
w/an electric motor or gas engine. 7/8" solid keyed 316 ss
shaft, 1-1/2" inlet, 1-1/4" outlet.
9203P- Clockwise rotation pedestal mounted pump designed for 100 82 4200
SR direct drive wi/a gas engine or electric motor. 7/8" solid
keyed 316 ss shaft, 1-1/2" inlet, 1-1/4" outlet.
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9203P-S-B) 9203P-S

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9500 SERIES POLYPROPYLENE FLANGE-MOUNT MODELS
9213P Flange-mounted pump designed for direct coupling to 5 90 66 3600
hp gasoline engines, 3/4" hollow keyed 416 stainless steel
shaft,1-1/2” inlet 1-1/4” outlet.
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9513P-B) 9513P

MODEL DESCRIPTION MAX MAX MAX PUMPS
NUMBER GPM PSI RPM
9200 SS PEDESTAL-MOUNT MODELS EXTEND Pump Life With
ST
9202S 316 stainless steel pump with 5/8” solid shaft and Life 103 170 6000 STAINLESS STEELAINLESS STEEL
Guard silicon carbide shaft seal. Ports (NPT): 1-1/4” inlet;
®
1” outlet.
9202S-R 316 stainless steel pump with 5/8” solid shaft and Life 103 170 6000
Guard silicon carbide shaft seal. Ports (NPT): 1-1/4” inlet;
®
1” outlet.
9203S 316 stainless steel pump with 5/8” solid shaft and Life 140 170 6000
Guard silicon carbide shaft seal. Ports (NPT): 1-1/2” inlet;
®
1-1/4” outlet.
9203S-R Clockwise rotation, 316 stainless steel pump with 5/8” solid shaft 140 170 6000
and Life Guard silicon carbide shaft seal. Ports (NPT): 1-1/2”
®
inlet, 1-1/4” outlet.
9206S 316 stainless steel pump with 5/8” solid shaft and Life 225 80 4200
Guard silicon carbide shaft seal. Ports (NPT): 2” inlet;
®
1-1/2” outlet. 9203S
*Universal Flange (220 x 220) - Add suffix “U” (i.e.: 9206C-U)
Universal Flange (300 x 220) - Add suffix “3U” (i.e.: 9206C-3U)
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9206C-B)

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES CI PEDESTAL-MOUNT MODELS WITH 12-VOLT
CLUTCH
9262C-C 12 volt heavy duty clutch w/5" diameter A-section pulley, 88 114 5000
1-1/4" NPT inlet, 1" NPT outlet, counterclockwise rotation.
9263C-C† 12 volt heavy duty clutch w/5" diameter A-section pulley, 1-1/2" 140 124 5000
NPT inlet, 1-1/4" NPT outlet, counterclockwise rotation.
9263C-CR 12 volt heavy duty clutch w/5" diameter A-section pulley, 140 124 5000 9262C-C
(3430-0592) 1-1/2" NPT inlet, 1-1/4" NPT outlet clockwise rotation.

®
Life Guard silicon carbide seal - Add suffix “B” - (ie: 9262C-C-B)
† Universal flange (220 x 200) - Add suffix “U” - (ie: 9262C-C-U)
