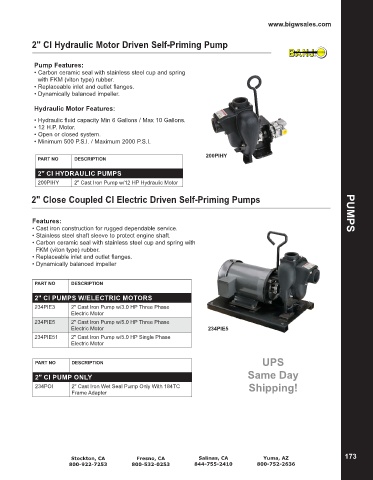

Page 175 - Catalog

www.bigwsales.com

2" CI Hydraulic Motor Driven Self-Priming Pump

Pump Features:
• Carbon ceramic seal with stainless steel cup and spring
with FKM (viton type) rubber.
• Replaceable inlet and outlet flanges.
• Dynamically balanced impeller.

Hydraulic Motor Features:
• Hydraulic fluid capacity Min 6 Gallons / Max 10 Gallons.
• 12 H.P. Motor.
• Open or closed system.
• Minimum 500 P.S.I. / Maximum 2000 P.S.I.

200PIHY
PART NO DESCRIPTION

2" CI HYDRAULIC PUMPS
200PIHY 2" Cast Iron Pump w/12 HP Hydraulic Motor

2" Close Coupled CI Electric Driven Self-Priming Pumps

Features: PUMPS
• Cast iron construction for rugged dependable service.
• Stainless steel shaft sleeve to protect engine shaft.
• Carbon ceramic seal with stainless steel cup and spring with
FKM (viton type) rubber.
• Replaceable inlet and outlet flanges.
• Dynamically balanced impeller

PART NO DESCRIPTION

2" CI PUMPS W/ELECTRIC MOTORS
234PIE3 2" Cast Iron Pump w/3.0 HP Three Phase
Electric Motor
234PIE5 2" Cast Iron Pump w/5.0 HP Three Phase
Electric Motor 234PIE5
234PIE51 2" Cast Iron Pump w/5.0 HP Single Phase
Electric Motor

UPS
PART NO DESCRIPTION

2" CI PUMP ONLY Same Day
234POI 2" Cast Iron Wet Seal Pump Only With 184TC Shipping!
Frame Adapter

Stockton, CA Fresno, CA Salinas, CA Yuma, AZ Stockton, CA Fresno, CA Salinas, CA Yuma, AZ 173
800-922-7253 800-532-0253 844-755-2410 800-752-2636 800-922-7253 800-532-0253 844-755-2410 800-752-2636
