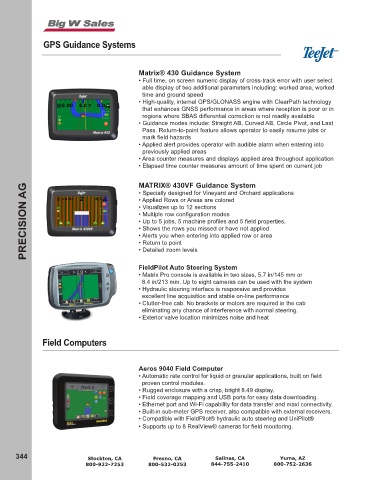

Page 346 - 2022 Online Catalog

GPS Guidance Systems

Matrix® 430 Guidance System
• Full time, on screen numeric display of cross-track error with user select
able display of two additional parameters including: worked area, worked
time and ground speed
• High-quality, internal GPS/GLONASS engine with ClearPath technology
that enhances GNSS performance in areas where reception is poor or in
regions where SBAS differential correction is not readily available
• Guidance modes include: Straight AB, Curved AB, Circle Pivot, and Last
Pass. Return-to-point feature allows operator to easily resume jobs or
mark field hazards
• Applied alert provides operator with audible alarm when entering into
previously applied areas
• Area counter measures and displays applied area throughout application
• Elapsed time counter measures amount of time spent on current job

MATRIX® 430VF Guidance System
PRECISION AG • Applied Rows or Areas are colored
• Specially designed for Vineyard and Orchard applications

• Visualizes up to 12 sections
• Multiple row configuration modes
• Up to 5 jobs, 5 machine profiles and 5 field properties.
• Shows the rows you missed or have not applied
• Alerts you when entering into applied row or area
• Return to point
• Detailed zoom levels

FieldPilot Auto Steering System
• Matrix Pro console is available in two sizes, 5.7 in/145 mm or
8.4 in/213 mm. Up to eight cameras can be used with the system
• Hydraulic steering interface is responsive and provides
excellent line acquisition and stable on-line performance
• Clutter-free cab. No brackets or motors are required in the cab
eliminating any chance of interference with normal steering.
• Exterior valve location minimizes noise and heat

Field Computers

Aeros 9040 Field Computer
• Automatic rate control for liquid or granular applications, built on field
proven control modules.
• Rugged enclosure with a crisp, bright 8.49 display.
• Field coverage mapping and USB ports for easy data downloading.
• Ethernet port and Wi-Fi capability for data transfer and maxi connectivity.
• Built-in sub-meter GPS receiver, also compatible with external receivers.
• Compatible with FieldPilot® hydraulic auto steering and UniPilot®
• Supports up to 8 RealView® cameras for field monitoring.
