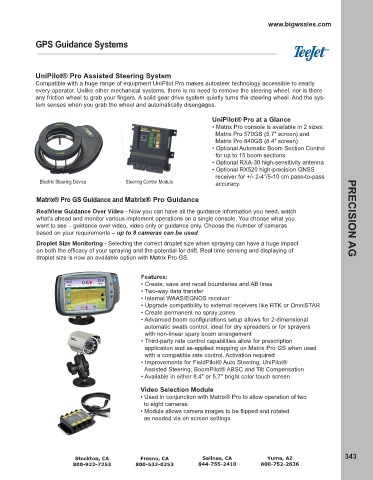

Page 345 - 2022 Online Catalog

www.bigwsales.com

GPS Guidance Systems

UniPilot® Pro Assisted Steering System
Compatible with a huge range of equipment UniPilot Pro makes autosteer technology accessible to nearly
every operator. Unlike other mechanical systems, there is no need to remove the steering wheel, nor is there
any friction wheel to grab your fingers. A solid gear drive system quietly turns the steering wheel. And the sys-
tem senses when you grab the wheel and automatically disengages.

UniPilot® Pro at a Glance
• Matrix Pro console is available in 2 sizes:
Matrix Pro 570GS (5.7″ screen) and
Matrix Pro 840GS (8.4″ screen)
• Optional Automatic Boom Section Control
for up to 15 boom sections
• Optional RXA-30 high-sensitivity antenna
• Optional RX520 high-precision GNSS
receiver for +/- 2-4”/5-10 cm pass-to-pass
Electric Steering Device Steering Control Module accuracy.

Matrix® Pro GS Guidance and Matrix® Pro Guidance

RealView Guidance Over Video - Now you can have all the guidance information you need, watch
what’s ahead and monitor various implement operations on a single console. You choose what you PRECISION AG
want to see – guidance over video, video only or guidance only. Choose the number of cameras
based on your requirements – up to 8 cameras can be used.
Droplet Size Monitoring - Selecting the correct droplet size when spraying can have a huge impact
on both the efficacy of your spraying and the potential for drift. Real time sensing and displaying of
droplet size is now an available option with Matrix Pro GS.

Features:
• Create, save and recall boundaries and AB lines
• Two-way data transfer
• Internal WAAS/EGNOS receiver
• Upgrade compatibility to external receivers like RTK or OmniSTAR
• Create permanent no spray zones
• Advanced boom configurations setup allows for 2-dimensional
automatic swath control; ideal for dry spreaders or for sprayers
with non-linear spary boom arrangement
• Third-party rate control capabilities allow for prescription
application and as-applied mapping on Matrix Pro GS when used
with a compatible rate control. Activation required
• Improvements for FieldPilot® Auto Steering, UniPilot®
Assisted Steering, BoomPilot® ABSC and Tilt Compensation
• Available in either 8.4″ or 5.7″ bright color touch screen

Video Selection Module
• Used in conjunction with Matrix® Pro to allow operation of two
to eight cameras
• Module allows camera images to be flipped and rotated
as needed via on screen settings
