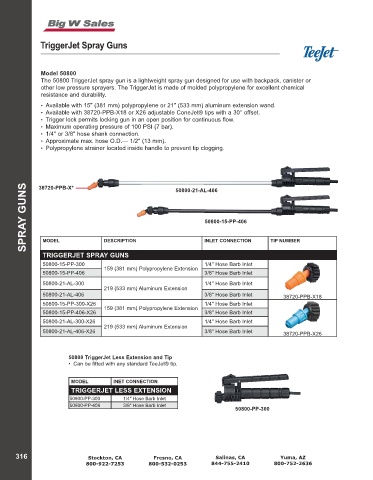

Page 318 - 2022 Online Catalog

TriggerJet Spray Guns

Model 50800
The 50800 TriggerJet spray gun is a lightweight spray gun designed for use with backpack, canister or
other low pressure sprayers. The TriggerJet is made of molded polypropylene for excellent chemical
resistance and durability.
• Available with 15" (381 mm) polypropylene or 21" (533 mm) aluminum extension wand.
• Available with 38720-PPB-X18 or X26 adjustable ConeJet® tips with a 30° offset.
• Trigger lock permits locking gun in an open position for continuous flow.
• Maximum operating pressure of 100 PSI (7 bar).
• 1/4" or 3/8" hose shank connection.
• Approximate max. hose O.D.— 1/2" (13 mm).
• Polypropylene strainer located inside handle to prevent tip clogging.

SPRAY GUNS 38720-PPB-X* 50800-21-AL-406

50800-15-PP-406

DESCRIPTION
MODEL
TRIGGERJET SPRAY GUNS INLET CONNECTION TIP NUMBER
50800-15-PP-300 159 (381 mm) Polypropylene Extension 1/4" Hose Barb Inlet
50800-15-PP-406 3/8" Hose Barb Inlet
50800-21-AL-300 1/4" Hose Barb Inlet
219 (533 mm) Aluminum Extension
50800-21-AL-406 3/8" Hose Barb Inlet 38720-PPB-X18
50800-15-PP-300-X26 159 (381 mm) Polypropylene Extension 1/4" Hose Barb Inlet
50800-15-PP-406-X26 3/8" Hose Barb Inlet
50800-21-AL-300-X26 1/4" Hose Barb Inlet
219 (533 mm) Aluminum Extension
50800-21-AL-406-X26 3/8" Hose Barb Inlet 38720-PPB-X26

50800 TriggerJet Less Extension and Tip
• Can be fitted with any standard TeeJet® tip.

MODEL INET CONNECTION
TRIGGERJET LESS EXTENSION
50800-PP-300 1/4" Hose Barb Inlet
50800-PP-406 3/8" Hose Barb Inlet
50800-PP-300
