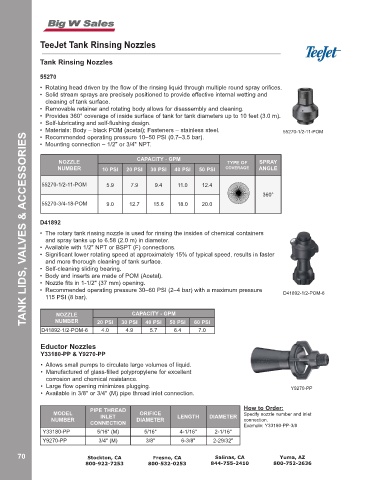

Page 72 - Catalog

TeeJet Tank Rinsing Nozzles

Tank Rinsing Nozzles

55270

• Rotating head driven by the flow of the rinsing liquid through multiple round spray orifices.
• Solid stream sprays are precisely positioned to provide effective internal wetting and
cleaning of tank surface.
• Removable retainer and rotating body allows for disassembly and cleaning.
• Provides 360° coverage of inside surface of tank for tank diameters up to 10 feet (3.0 m).
• Self-lubricating and self-flushing design.
• Materials: Body – black POM (acetal); Fasteners – stainless steel. 55270-1/2-11-POM
TANK LIDS, VALVES & ACCESSORIES
• Recommended operating pressure 10–50 PSI (0.7–3.5 bar).
• Mounting connection – 1/2" or 3/4" NPT.

CAPACITY - GPM
NOZZLE TYPE OF SPRAY
NUMBER 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI COVERAGE ANGLE

55270-1/2-11-POM 5.9 7.9 9.4 11.0 12.4
360°
55270-3/4-18-POM 9.0 12.7 15.6 18.0 20.0

D41892
• The rotary tank rinsing nozzle is used for rinsing the insides of chemical containers
and spray tanks up to 6.58 (2.0 m) in diameter.
• Available with 1/2" NPT or BSPT (F) connections.
• Significant lower rotating speed at approximately 15% of typical speed, results in faster
and more thorough cleaning of tank surface.
• Self-cleaning sliding bearing.
• Body and inserts are made of POM (Acetal).
• Nozzle fits in 1-1/2" (37 mm) opening.
• Recommended operating pressure 30–60 PSI (2–4 bar) with a maximum pressure D41892-1/2-POM-6
115 PSI (8 bar).

NOZZLE CAPACITY - GPM
NUMBER 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI
D41892-1/2-POM-6 4.0 4.9 5.7 6.4 7.0

Eductor Nozzles
Y33180-PP & Y9270-PP
• Allows small pumps to circulate large volumes of liquid.
• Manufactured of glass-filled polypropylene for excellent
corrosion and chemical resistance.
• Large flow opening minimizes plugging. Y9270-PP
• Available in 3/8" or 3/4" (M) pipe thread inlet connection.

PIPE THREAD How to Order:
MODEL INLET ORIFICE LENGTH DIAMETER Specify nozzle number and inlet
NUMBER CONNECTION DIAMETER connection.
Example: Y33180-PP-3/8
Y33180-PP 5/16" (M) 5/16" 4-1/16" 2-1/16"
Y9270-PP 3/4" (M) 3/8" 6-3/8" 2-29/32"
