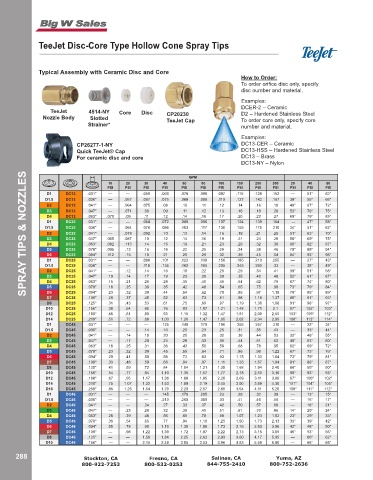

TeeJet Disc-Core Type Hollow Cone Spray Tips

Typical Assembly with Ceramic Disc and Core
How to Order:
To order orifice disc only, specify
disc number and material.
Examples:
DCER-2 – Ceramic
TeeJet 4514-NY Core Disc D2 – Hardened Stainless Steel
Nozzle Body Slotted CP20230 To order core only, specify core
TeeJet Cap
Strainer* number and material.
Examples:
CP26277-1-NY DC13-CER – Ceramic
Quick TeeJet® Cap DC13-HSS – Hardened Stainless Steel
For ceramic disc and core DC13 – Brass
DC13-NY – Nylon
SPRAY TIPS & NOZZLES
GPM
10 20 30 40 60 80 100 150 200 300 20 40 80
PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI
—
—
D1 DC13 .031" — .057 .059 .066 .078 .088 .097 .115 .128 .152 38° 51° 62°
PUMPS D2 DC13 .041" .070 .064 .075 .072 .080 .096 .107 .124 .139 .164 49° 67° 72°
.036"
DC13
.075
—
.067
.088
.167
.142
.127
66°
55°
D1.5
.098
.110
.18
.10
.08
.11
—
.12
.16
.14
DC13
D3
.16
.071
.18
.09
.047"
.12
.11
.13
.08
70°
53°
75°
—
.20
.14
.11
.12
.09
69°
.27
83°
79°
.23
.17
.16
.20
D4
.063"
DC13
58°
DC23
47°
—
D1
.031"
.064
—
—
D1.5
.21
70°
.25
.13
D2 DC23 .036" — .064 .076 .086 .103 .117 .130 .155 .175 .210 34° 51° 62°
.14
—
.078
51°
.10
63°
.19
.16
.041"
DC23
.092
D3 DC23 .047" .065 .087 .10 .12 .14 .16 .18 .21 .24 .28 58° 69° 75°
D4 DC23 .063" .082 .113 .14 .15 .19 .21 .23 .28 .32 .38 68° 82° 87°
D5 DC23 .078" .095 .13 .16 .18 .22 .25 .28 .34 .38 .46 79° 89° 94°
D6 DC23 .094" .112 .15 .19 .21 .26 .29 .32 .39 .45 .54 84° 93° 98°
D1 DC25 .031" — — .088 .101 .122 .138 .156 .185 .210 .255 — 27° 43°
D1.5 DC25 .036" — — .118 .135 .162 .185 .205 .245 .280 .33 — 38° 49°
D2 DC25 .041" — .12 .14 .16 .19 .22 .25 .29 .34 .41 39° 51° 58°
D3 DC25 .047" .10 .14 .17 .19 .23 .26 .29 .35 .40 .48 52° 61° 67°
D4 DC25 .063" .15 .21 .25 .29 .35 .40 .45 .54 .62 .75 67° 74° 80°
D5 DC25 .078" .18 .25 .30 .35 .42 .48 .54 .65 .75 .90 73° 79° 84°
D6 DC25 .094" .23 .32 .39 .44 .54 .62 .70 .85 .97 1.19 79° 85° 89°
D7 DC25 .109" .26 .37 .45 .52 .63 .73 .81 .98 1.18 1.37 85° 91° 93°
D8 DC25 .125" .31 .43 .53 .61 .75 .89 .97 1.19 1.36 1.68 91° 96° 97°
D10 DC25 .156" .38 .54 .65 .76 .93 1.07 1.21 1.48 1.71 2.1 97° 102° 103°
D12 DC25 .188" .46 .61 .80 .93 1.15 1.32 1.47 1.81 2.09 2.55 103° 109° 112°
D14 DC25 .219" .51 .72 .88 1.03 1.26 1.47 1.65 2.02 2.34 2.89 108° 113° 114°
D1 DC45 .031" — — — .125 .148 .170 .190 .255 .257 .310 — 22° 34°
D1.5 DC45 .036" — — .14 .16 .20 .23 .25 .31 .35 .43 — 33° 44°
D2 DC45 .041" — .14 .18 .20 .25 .28 .32 .38 .44 .53 32° 46° 55°
D3 DC45 .047" — .17 .20 .23 .28 .33 .36 .44 .51 .62 40° 53° 60°
D4 DC45 .063" .18 .25 .31 .36 .43 .50 .56 .68 .78 .95 62° 69° 72°
D5 DC45 .078" .23 .32 .39 .45 .55 .64 .71 .86 .99 1.22 67° 73° 76°
D6 DC45 .094" .29 .41 .50 .58 .72 .83 .93 1.15 1.33 1.64 73° 79° 81°
D7 DC45 .109" .33 .48 .59 .68 .84 .97 1.11 1.35 1.57 1.94 81° 86° 87°
D8 DC45 .125" .41 .59 .72 .84 1.04 1.21 1.35 1.68 1.94 2.40 86° 90° 90°
D10 DC45 .156" .54 .77 .94 1.10 1.35 1.57 1.77 2.18 2.50 3.10 90° 93° 93°
D12 DC45 .188" .67 .95 1.17 1.36 1.68 1.95 2.20 2.69 3.11 3.80 97° 100° 102°
D14 DC45 .218" .75 1.07 1.32 1.53 1.89 2.19 2.45 3.00 3.49 4.30 101° 104° 105°
D16 DC45 .250" .86 1.25 1.54 1.79 2.20 2.57 2.89 3.54 4.11 5.20 108° 111° 112°
D1 DC46 .031" — — — .145 .178 .205 .23 .28 .32 .39 — 13° 15°
D1.5 DC46 .036" — — — .213 .260 .300 .33 .41 .46 .56 — 15° 17°
D2 DC46 .041" — — .24 .27 .33 .37 .42 .50 .57 .68 — 18° 21°
D3 DC46 .047" — .23 .28 .32 .39 .45 .51 .61 .70 .86 14° 20° 24°
D4 DC46 .063" .28 .39 .48 .56 .68 .78 .88 1.07 1.23 1.52 23° 29° 33°
D5 DC46 .078" .38 .54 .66 .77 .94 1.10 1.25 1.50 1.73 2.13 33° 39° 42°
D6 DC46 .094" .55 .78 .95 1.10 1.35 1.58 1.73 2.16 2.50 3.06 42° 48° 50°
D7 DC46 .109" — .98 1.22 1.39 1.72 1.97 2.22 2.73 3.15 3.85 48° 53° 56°
D8 DC46 .125" — — 1.59 1.84 2.25 2.62 2.93 3.60 4.17 5.05 — 60° 62°
D10 DC46 .156" — — 2.15 2.48 3.05 3.53 3.96 4.83 5.59 6.80 — 66° 68°
