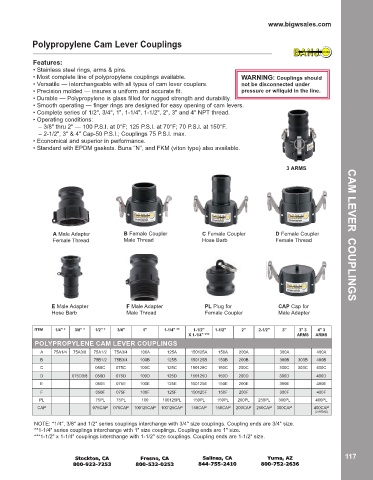

Page 119 - Catalog

www.bigwsales.com

Polypropylene Cam Lever Couplings

Features:
• Stainless steel rings, arms & pins.
• Most complete line of polypropylene couplings available. WARNING: Couplings should
• Versatile — interchangeable with all types of cam lever couplers. not be disconnected under
• Precision molded — insures a uniform and accurate fit. pressure or w/liquid in the line.
• Durable — Polypropylene is glass filled for rugged strength and durability.
• Smooth operating — finger rings are designed for easy opening of cam levers.
• Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread.
• Operating conditions:
– 3/8" thru 2" — 100 P.S.I. at 0°F; 125 P.S.I. at 70°F; 70 P.S.I. at 150°F.
– 2-1/2", 3" & 4" Cap-50 P.S.I.; Couplings 75 P.S.I. max.
• Economical and superior in performance.
• Standard with EPDM gaskets. Buna “N”, and FKM (viton type) also available.

3 ARMS

A Male Adapter B Female Coupler C Female Coupler D Female Coupler CAM LEVER COUPLINGS
Female Thread Male Thread Hose Barb Female Thread

E Male Adapter F Male Adapter PL Plug for CAP Cap for
Hose Barb Male Thread Female Coupler Male Adapter

ITEM 1/4" * 3/8" * 1/2" * 3/4" 1" 1-1/4" ** 1-1/2" 1-1/2" 2" 2-1/2" 3" 3" 3 4" 3
X 1-1/4" *** ARMS ARMS
POLYPROPYLENE CAM LEVER COUPLINGS
A 75A1/4 75A3/8 75A1/2 75A3/4 100A 125A 150125A 150A 200A 300A 400A
B 75B1/2 75B3/4 100B 125B 150125B 150B 200B 300B 303B 400B
C 050C 075C 100C 125C 150125C 150C 200C 300C 303C 400C
D 075D3/8 050D 075D 100D 125D 150125D 150D 200D 300D 400D
E 050E 075E 100E 125E 150125E 150E 200E 300E 400E
F 050F 075F 100F 125F 150125F 150F 200F 300F 400F
PL 75PL 75PL 100 100125PL 150PL 150PL 200PL 250PL 300PL 400PL
CAP 075CAP 075CAP 100125CAP 100125CAP 150CAP 150CAP 200CAP 250CAP 300CAP 400CAP
(2 ARMS)

NOTE: *1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size.
**1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size.
***1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size.
