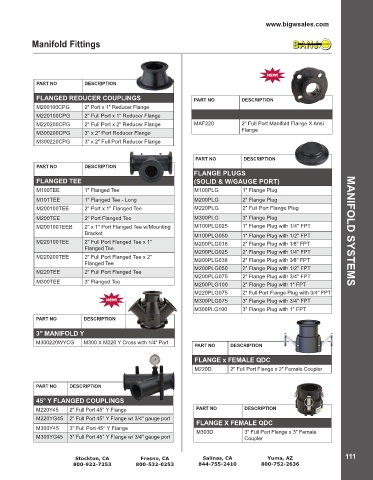

Page 113 - Catalog

www.bigwsales.com

Manifold Fittings

NEW!
PART NO DESCRIPTION

FLANGED REDUCER COUPLINGS PART NO DESCRIPTION
M200100CPG 2" Port x 1" Reducer Flange
M220100CPG 2" Full Port x 1" Reducer Flange
M220200CPG 2" Full Port x 2" Reducer Flange MAF220 2" Full Port Manifold Flange X Ansi
M300200CPG 3" x 2" Port Reducer Flange Flange
M300220CPG 3" x 2" Full Port Reducer Flange

PART NO DESCRIPTION
PART NO DESCRIPTION
FLANGE PLUGS
FLANGED TEE (SOLID & W/GAUGE PORT)
M100TEE 1" Flanged Tee M100PLG 1" Flange Plug
M101TEE 1" Flanged Tee - Long M200PLG 2" Flange Plug
M200100TEE 2" Port x 1" Flanged Tee M220PLG 2" Full Port Flange Plug
M200TEE 2" Port Flanged Tee M300PLG 3" Flange Plug
M200100TEEB 2" x 1" Port Flanged Tee w/Mounting M100PLG025 1" Flange Plug with 1/4" FPT
Bracket M100PLG050 1" Flange Plug with 1/2" FPT MANIFOLD SYSTEMS
M220100TEE 2" Full Port Flanged Tee x 1" M200PLG018 2" Flange Plug with 1⁄8" FPT
Flanged Tee M200PLG025 2" Flange Plug with 1/4" FPT
M220200TEE 2" Full Port Flanged Tee x 2" M200PLG038 2" Flange Plug with 3⁄8" FPT
Flanged Tee
M220TEE 2" Full Port Flanged Tee M200PLG050 2" Flange Plug with 1/2" FPT
M200PLG075 2" Flange Plug with 3/4" FPT
M300TEE 3" Flanged Tee
M200PLG100 2" Flange Plug with 1" FPT
M220PLG075 2" Full Port Flange Plug with 3/4" FPT
NEW! M300PLG075 3" Flange Plug with 3/4" FPT
M300PLG100 3" Flange Plug with 1" FPT
PART NO DESCRIPTION

3" MANIFOLD Y

M300220WYCG M300 X M220 Y Cross with 1/4" Port
PART NO DESCRIPTION
FLANGE x FEMALE QDC
M220D 2" Full Port Flange x 2" Female Coupler

PART NO DESCRIPTION

45° Y FLANGED COUPLINGS
M220Y45 2" Full Port 45° Y Flange PART NO DESCRIPTION
M220YG45 2" Full Port 45° Y Flange w/ 3/4" gauge port
FLANGE X FEMALE QDC
M300Y45 3" Full Port 45° Y Flange M303D 3" Full Port Flange x 3" Female
M300YG45 3" Full Port 45° Y Flange w/ 3/4" gauge port Coupler
