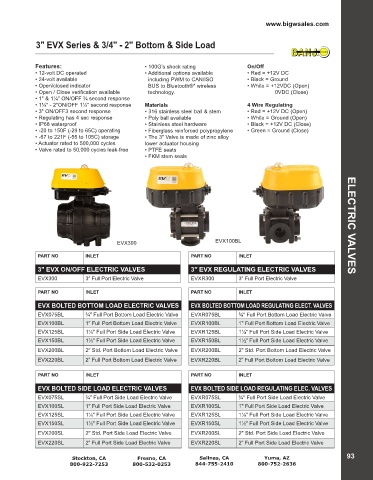

Page 95 - 2022 Online Catalog

www.bigwsales.com

3" EVX Series & 3/4" - 2" Bottom & Side Load

Features: • 100G’s shock rating On/Off
• 12-volt DC operated • Additional options available • Red = +12V DC
• 24-volt available including PWM to CAN/ISO • Black = Ground
• Open/closed indicator BUS to Bluetooth®* wireless • White = +12VDC (Open)
• Open / Close verification available technology. 0VDC (Close)
• 1" & 1¼" ON/OFF ¾ second response
• 1½" - 2"ON/OFF 1½" second response Materials 4 Wire Regulating
• 3" ON/OFF3 second response • 316 stainless steel ball & stem • Red = +12V DC (Open)
• Regulating has 4 sec response • Poly ball available • White = Ground (Open)
• IP68 waterproof • Stainless steel hardware • Black = +12V DC (Close)
• -20 to 150F (-29 to 65C) operating • Fiberglass reinforced polypropylene • Green = Ground (Close)
• -67 to 221F (-55 to 105C) storage • The 3" Valve is made of zinc alloy
• Actuator rated to 500,000 cycles lower actuator housing
• Valve rated to 50,000 cycles leak-free • PTFE seats
• FKM stem seals

EVX300 EVX100BL ELECTRIC VALVES

PART NO INLET PART NO INLET

3" EVX ON/OFF ELECTRIC VALVES 3" EVX REGULATING ELECTRIC VALVES
EVX300 3" Full Port Electric Valve EVXR300 3" Full Port Electric Valve

PART NO INLET PART NO INLET
EVX BOLTED BOTTOM LOAD ELECTRIC VALVES EVX BOLTED BOTTOM LOAD REGULATING ELECT. VALVES

EVX075BL ¾" Full Port Bottom Load Electric Valve EVXR075BL ¾" Full Port Bottom Load Electric Valve
EVX100BL 1" Full Port Bottom Load Electric Valve EVXR100BL 1" Full Port Bottom Load Electric Valve
EVX125BL 1¼" Full Port Side Load Electric Valve EVXR125BL 1¼" Full Port Side Load Electric Valve
EVX150BL 1½" Full Port Side Load Electric Valve EVXR150BL 1½" Full Port Side Load Electric Valve
EVX200BL 2" Std. Port Bottom Load Electric Valve EVXR200BL 2" Std. Port Bottom Load Electric Valve
EVX220BL 2” Full Port Bottom Load Electric Valve EVXR220BL 2” Full Port Bottom Load Electric Valve

PART NO INLET PART NO INLET

EVX BOLTED SIDE LOAD ELECTRIC VALVES EVX BOLTED SIDE LOAD REGULATING ELEC. VALVES
EVX075SL ¾" Full Port Side Load Electric Valve EVXR075SL ¾" Full Port Side Load Electric Valve
EVX100SL 1" Full Port Side Load Electric Valve EVXR100SL 1" Full Port Side Load Electric Valve
EVX125SL 1¼" Full Port Side Load Electric Valve EVXR125SL 1¼" Full Port Side Load Electric Valve
EVX150SL 1½" Full Port Side Load Electric Valve EVXR150SL 1½" Full Port Side Load Electric Valve
EVX200SL 2" Std. Port Side Load Electric Valve EVXR200SL 2" Std. Port Side Load Electric Valve

EVX220SL 2” Full Port Side Load Electric Valve EVXR220SL 2” Full Port Side Load Electric Valve
