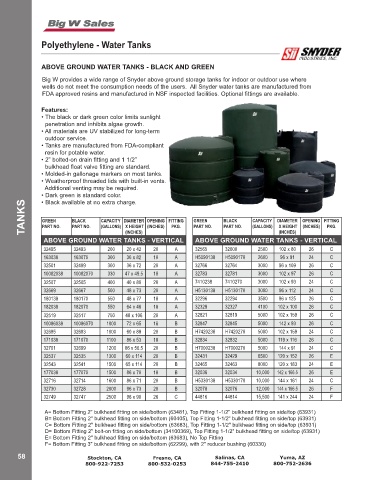

Page 60 - 2022 Online Catalog

Polyethylene - Water Tanks

ABOVE GROUND WATER TANKS - BLACK AND GREEN

Big W provides a wide range of Snyder above ground storage tanks for indoor or outdoor use where
wells do not meet the consumption needs of the users. All Snyder water tanks are manufactured from
FDA approved resins and manufactured in NSF inspected facilities. Optional fittings are available.

Features:
• The black or dark green color limits sunlight
penetration and inhibits algae growth.
• All materials are UV stabilized for long-term
outdoor service.
• Tanks are manufactured from FDA-compliant
resin for potable water.
• 2” bolted-on drain fitting and 1 1/2”
bulkhead float valve fitting are standard.
• Molded-in gallonage markers on most tanks.
• Weatherproof threaded lids with built-in vents.
Additional venting may be required.
• Dark green is standard color.
• Black available at no extra charge.
TANKS GREEN BLACK CAPACITY DIAMETER OPENING FITTING GREEN BLACK CAPACITY DIAMETER OPENING FITTING

PART NO.
PART NO.
PKG.
PART NO.
(GALLONS) X HEIGHT (INCHES)
(GALLONS)
(INCHES)
PART NO.
PKG.
X HEIGHT
(INCHES)
(INCHES)
ABOVE GROUND WATER TANKS - VERTICAL ABOVE GROUND WATER TANKS - VERTICAL
32495 32493 200 20 x 42 20 A 32565 32600 2500 102 x 80 26 C
163038 163070 300 36 x 82 10 A H5090138 H5090170 2600 96 x 91 24 C
32501 32499 300 36 x 72 20 A 32766 32764 3000 96 x 109 26 C
10082038 10082070 330 47 x 49.5 18 A 32783 32781 3000 102 x 97 26 C
32507 32505 400 40 x 80 20 A 7410238 7410270 3000 102 x 93 24 C
32669 32667 500 48 x 73 20 A H5130138 H5130170 3000 96 x 112 24 C
180138 180170 550 48 x 77 18 A 32296 32294 3500 96 x 125 26 C
182038 182070 550 64 x 46 18 A 32329 32327 4100 102 x 100 26 C
32519 32517 750 48 x 106 20 A 32821 32819 5000 102 x 159 26 C
10086038 10086070 1000 72 x 65 18 B 32847 32845 5000 142 x 93 26 C
32685 32683 1000 60 x 89 20 B H7420238 H7420270 5000 102 x 159 24 C
171038 171070 1100 86 x 53 18 B 32834 32832 5000 119 x 116 26 C
32701 32699 1200 86 x 56.5 20 B H7000238 H7000270 5000 144 x 91 24 C
32537 32535 1300 60 x 114 20 B 32431 32429 6500 120 x 152 26 E
32543 32541 1500 65 x 114 20 B 32465 32463 8000 120 x 183 24 E
177038 177070 1500 86 x 70 18 B 32036 32034 10,000 142 x 166.5 26 E
32716 32714 1600 86 x 71 20 B H5330138 H5330170 10,000 144 x 161 24 C
32730 32728 2000 96 x 73 20 B 32078 32076 12,000 144 x 196.5 26 F
32749 32747 2500 96 x 90 26 C 44816 44814 15,500 141 x 244 24 F

A= Bottom Fitting 2" bulkhead fitting on side/bottom (63481), Top Fitting 1-1/2" bulkhead fitting on side/top (63931)
B= Bottom Fitting 2" bulkhead fitting on side/bottom (60405), Top Fitting 1-1/2" bulkhead fitting on side/top (63931)
C= Bottom Fitting 2" bulkhead fitting on side/bottom (63683), Top Fitting 1-1/2" bulkhead fitting on side/top (63931)
D= Bottom Fitting 2" bolt-on fitting on side/bottom (34100369), Top Fitting 1-1/2" bulkhead fitting on side/top (63931)
E= Bottom Fitting 2" bulkhead fitting on side/bottom (63683), No Top Fitting
F= Bottom Fitting 3" bulkhead fitting on side/bottom (62299), with 2" reducer bushing (60330)
