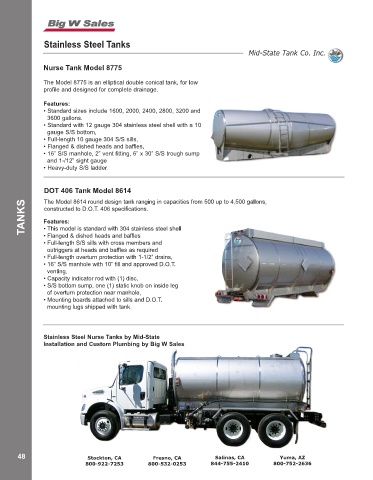

Page 50 - 2022 Online Catalog

Stainless Steel Tanks
Mid-State Tank Co. Inc.

Nurse Tank Model 8775

The Model 8775 is an elliptical double conical tank, for low
profile and designed for complete drainage.

Features:
• Standard sizes include 1600, 2000, 2400, 2800, 3200 and
3600 gallons.
• Standard with 12 gauge 304 stainless steel shell with a 10
gauge S/S bottom,
• Full-length 10 gauge 304 S/S sills,
• Flanged & dished heads and baffles,
• 16” S/S manhole, 2” vent fitting, 6” x 30” S/S trough sump
and 1-/12” sight gauge
• Heavy-duty S/S ladder.

DOT 406 Tank Model 8614

The Model 8614 round design tank ranging in capacities from 500 up to 4,500 gallons,
TANKS constructed to D.O.T. 406 specifications.

Features:
• This model is standard with 304 stainless steel shell
• Flanged & dished heads and baffles
• Full-length S/S sills with cross members and
outriggers at heads and baffles as required
• Full-length overturn protection with 1-1/2” drains,
• 16” S/S manhole with 10” fill and approved D.O.T.
venting,
• Capacity indicator rod with (1) disc,
• S/S bottom sump, one (1) static knob on inside leg
of overturn protection near manhole,
• Mounting boards attached to sills and D.O.T.
mounting lugs shipped with tank.

Stainless Steel Nurse Tanks by Mid-State
Installation and Custom Plumbing by Big W Sales
