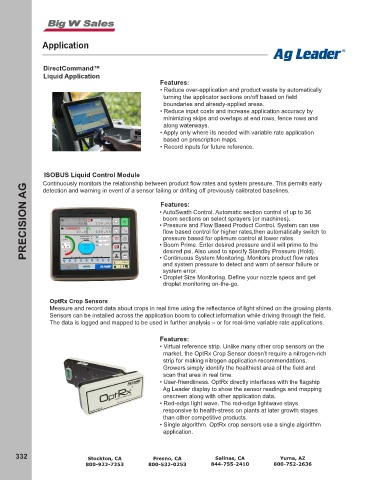

Page 334 - 2022 Online Catalog

Application

DirectCommand™
Liquid Application
Features:
• Reduce over-application and product waste by automatically
turning the applicator sections on/off based on field
boundaries and already-applied areas.
• Reduce input costs and increase application accuracy by
minimizing skips and overlaps at end rows, fence rows and
along waterways.
• Apply only where its needed with variable rate application
based on prescription maps.
• Record inputs for future reference.

ISOBUS Liquid Control Module
Continuously monitors the relationship between product flow rates and system pressure. This permits early
PRECISION AG • AutoSwath Control. Automatic section control of up to 36
detection and warning in event of a sensor failing or drifting off previously calibrated baselines.
Features:

boom sections on select sprayers (or machines).
• Pressure and Flow Based Product Control. System can use
flow based control for higher rates,then automatically switch to
pressure based for optimum control at lower rates.
• Boom Prime. Enter desired pressure and it will prime to the
desired psi. Also used to specify Standby Pressure (Hold).
• Continuous System Monitoring. Monitors product flow rates
and system pressure to detect and warn of sensor failure or
system error.
• Droplet Size Monitoring. Define your nozzle specs and get
droplet monitoring on-the-go.

OptRx Crop Sensors
Measure and record data about crops in real time using the reflectance of light shined on the growing plants.
Sensors can be installed across the application boom to collect information while driving through the field.
The data is logged and mapped to be used in further analysis – or for real-time variable rate applications.

Features:
• Virtual reference strip. Unlike many other crop sensors on the
market, the OptRx Crop Sensor doesn’t require a nitrogen-rich
strip for making nitrogen application recommendations.
Growers simply identify the healthiest area of the field and
scan that area in real time.
• User-friendliness. OptRx directly interfaces with the flagship
Ag Leader display to show the sensor readings and mapping
onscreen along with other application data.
• Red-edge light wave. The red-edge lightwave stays
responsive to health-stress on plants at later growth stages
than other competitive products.
• Single algorithm. OptRx crop sensors use a single algorithm
application.
